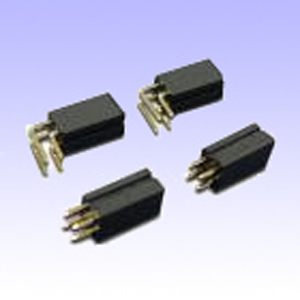

RBS04 - 기울기 스위치


판매가	문의
제조사	OncQue
상품번호	RBS04
규격
문의전화	82-2-6679-1907

Datasheet

SPECIFICATIONS

Mechanical Characteristics

  Temperature Range:
    - Operating: -25°C to +85°C
    - Storage: -40°C to +85°C
  Pull Force of Terminal: 500 gf for 1 minute
  Operation Life: 100,000 cycles
  Humidity: 95% RH, 40°C for 96 hrs.
  Solder Ability: After flux 260±5°C for 5±0.5 seconds 95% coverage
Bill of Material

  Housing: Polyamide + Glass-Fiber
  Cover: Polyamide + Glass-Fiber
  Terminal: Copper Alloy, Gold Plated over Nickel
  Ball: Copper Alloy, Gold Plated over Nickel

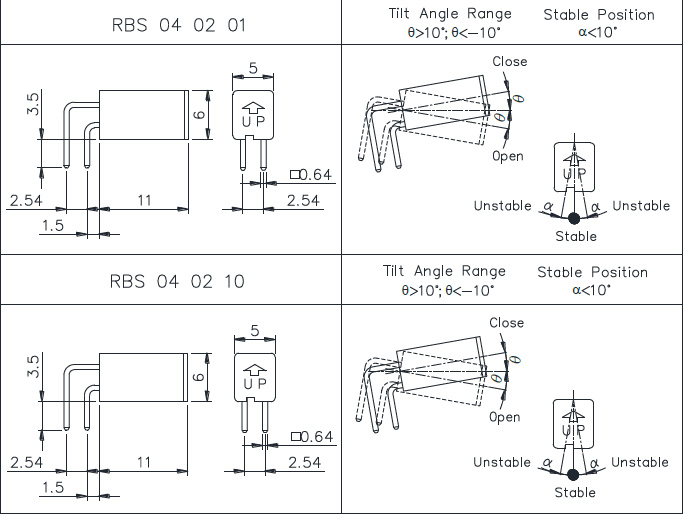

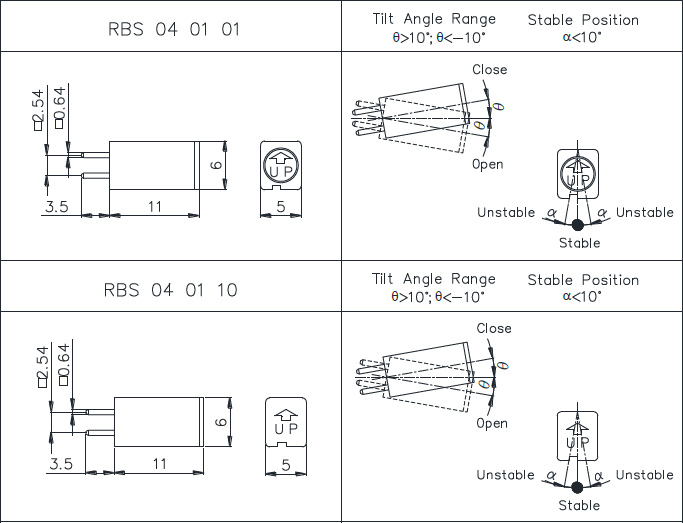

DIMENSIONS
