SPECIFICATIONS
Electrical Characteristics
Contact Rating: 10mA, 5VDC
Contact Resistance: 100(ohm) max.
Differential Angle: Please refer to the Datasheet
Switching Type: Normal Open (NO)
Insulation Resistance: 1,000M(ohm) min. at 100VDC
Dielectric Strength: 500VDC min. for 1 minute
Capacitance: 5pF max.
Mechanical Characteristics
Temperature Range:
- Operating: -25°C to +85°C
- Storage: -40°C to +85°C
Pull Force of Terminal: 500 gf for 1 minute
Operation Life: 100,000 cycles
Humidity: 95% RH, 40°C for 96 hrs.
Solder Ability: After flux 245±5°C for 5±0.5 seconds 95% coverage
Bill of Material
Housing: ZINC Alloy, Tin Plated over Nickel
Cover: Polyamide + Glass-Fiber
Terminal: Copper Alloy, Gold Plated over Nickel
Ball: Copper Alloy, Gold Plated over Nickel
Steel Ball: Stainless Steel

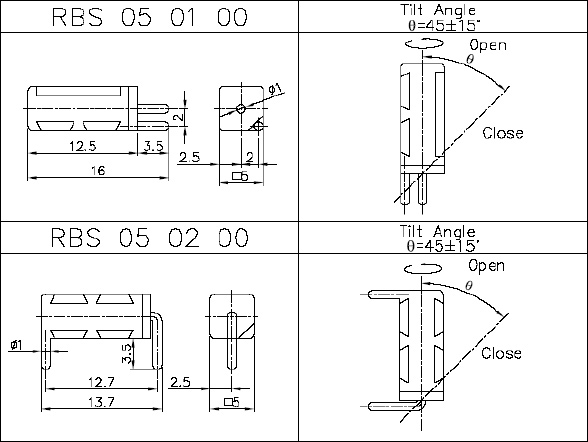

DIMENSIONS
 |
