-Snap in structure in Compact body size
-Flux-resistance structure with integrally molded terminal
|
5A, 30V DC |
S.P.S.T-NO |
|
|
|
|
|
|
|
|
DE |
|
|
-Compact size(19.8x6.4x9.4mm)
-Seven terminal variations
-1mm minimum contact gap
|
0.1A ~ 5A 30VDC
1A 42VDC
0.1A ~ 3A 125/250VAC
|
S.P.D.T |
|
|
|
|
|
|
|
|

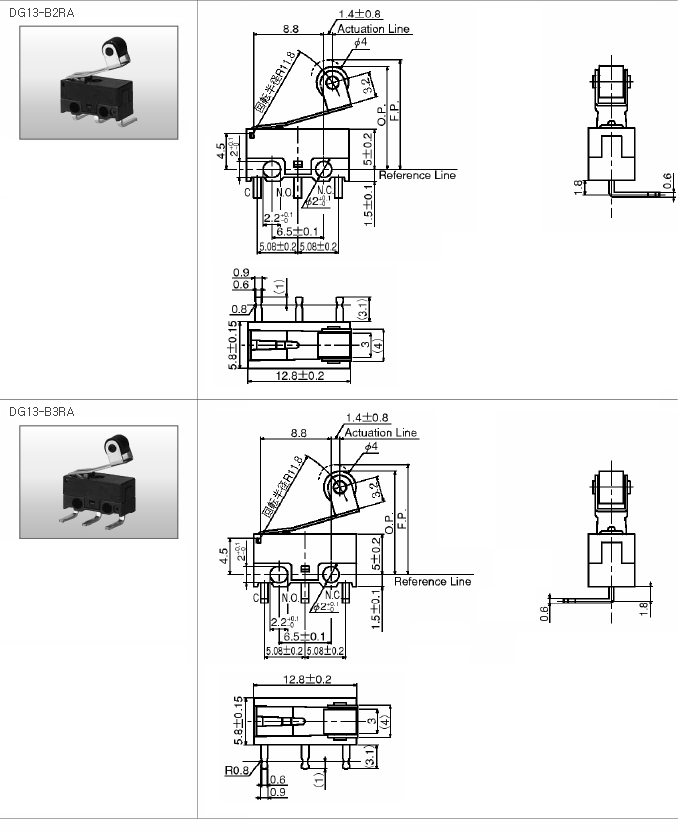

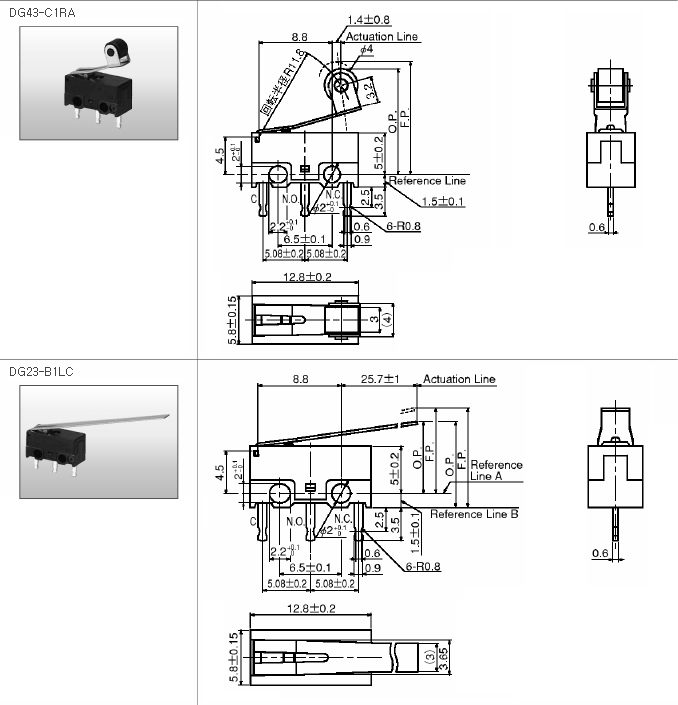

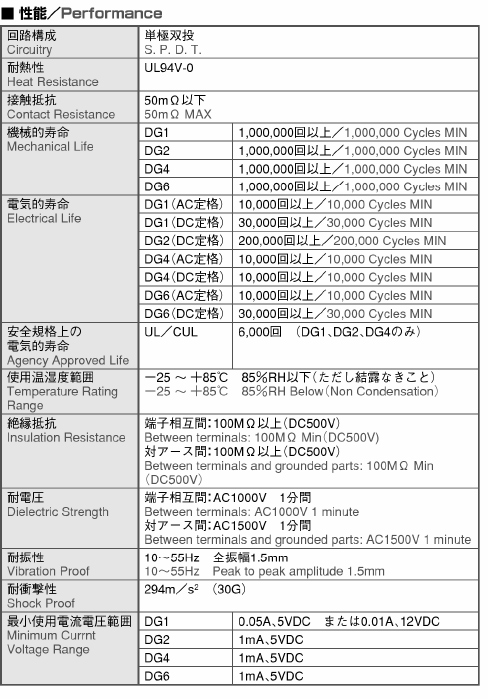

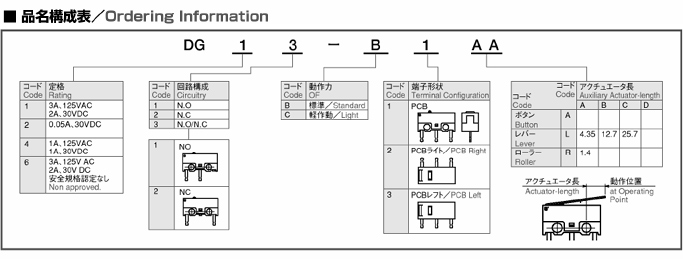

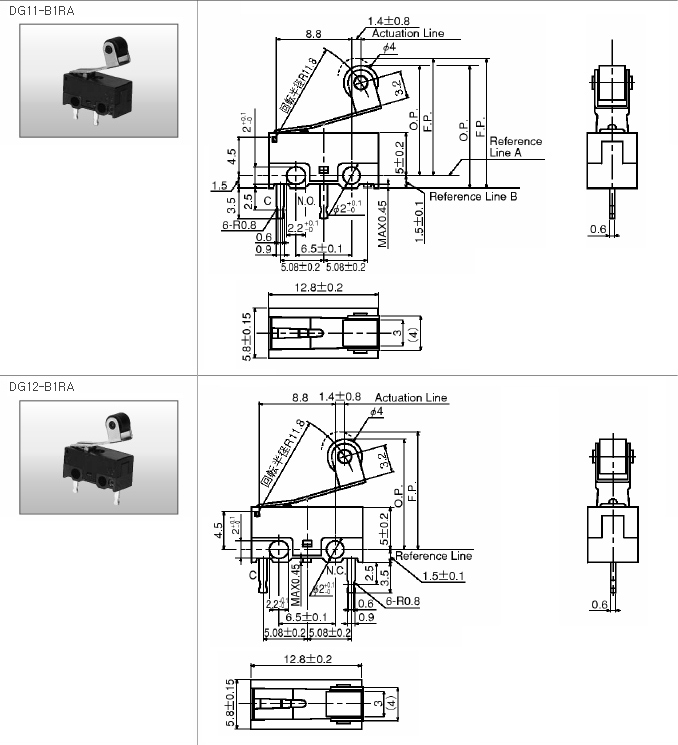

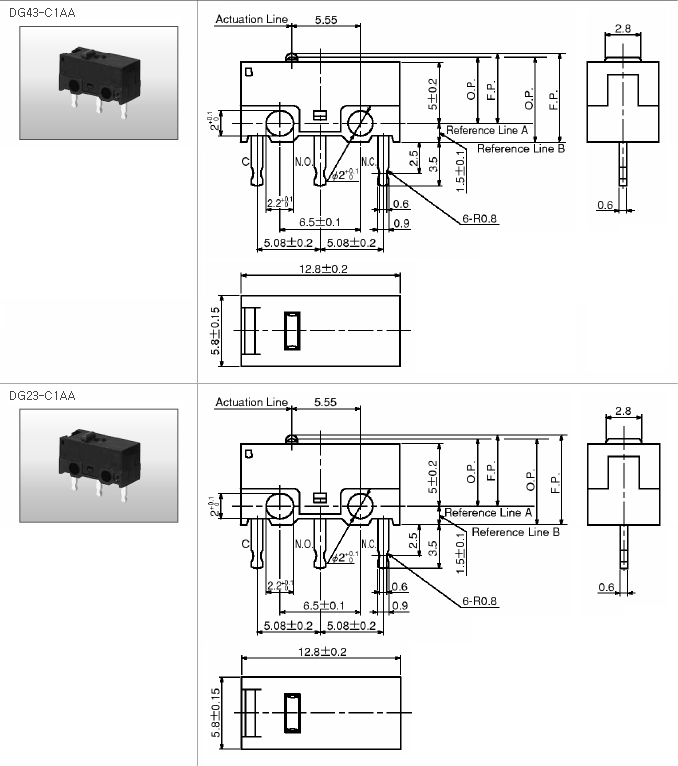

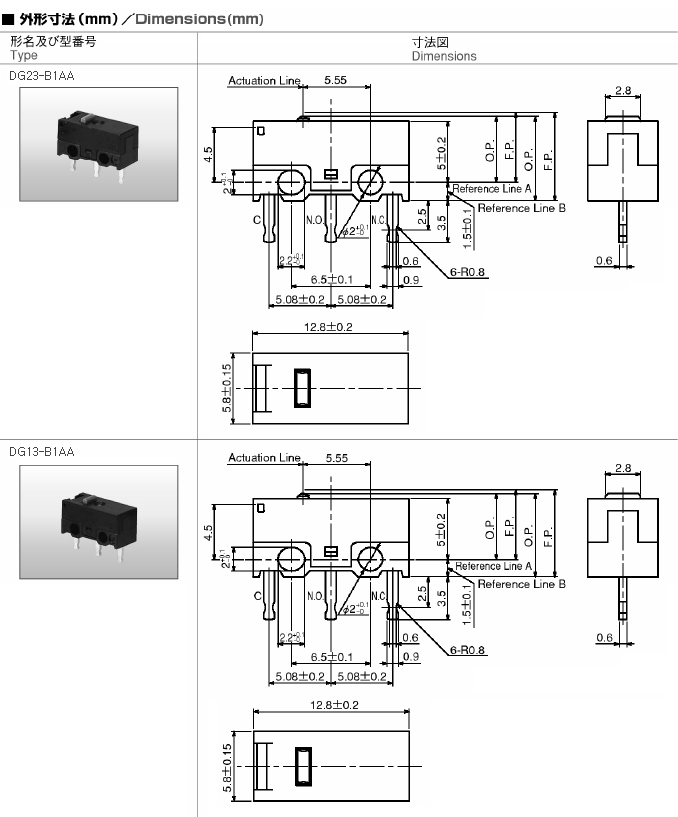

DG |
|
|

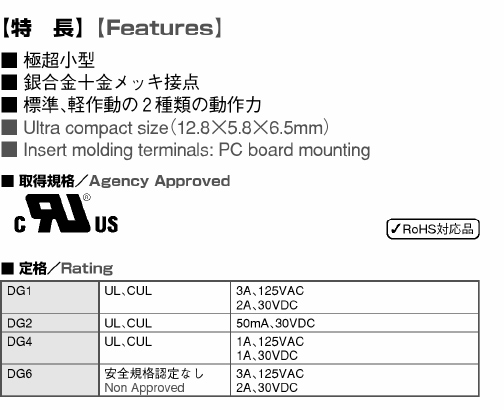

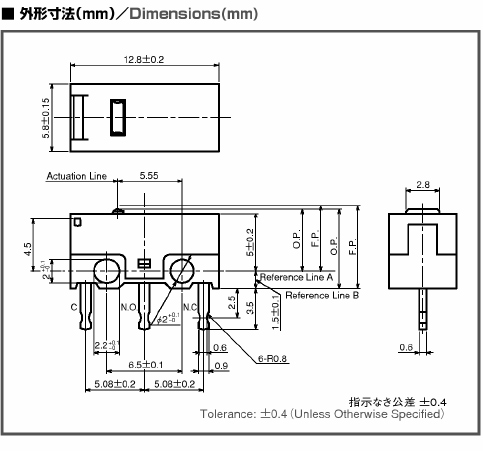

-Ultra compact size(12.8x5.8x6.5mm)
-Insert molding terminals:
PC board mounting
|
50mA~2A 30VDC
1A~3A 125VAC
|
S.P.D.T |
|
|
|
|
|
|
|
|
DH |
|
|
-Ultra compact size(8.2x2.7x6.85mm)
-Designed for low energy
applications
-Vertical and horizontal printed
circuit board mounting
|
5mA~300mA 30VDC |
S.P.D.T |
|
|
|
|
|
|
|
|
DT |
|
|
-Compact size(19.8x6.4x10.6mm)
-Light operating force
-Accurate position sensing
|
0.3A~5A 30VDC
0.1A 125VAC
|
|
|
|
|
|
|
|
|
DP |
|
|
-Compact size(24.0x8.7x11.7mm)
-High current line interrupt
|
8A 30VDC
6A 42VDC
|
S.P.S.T-N.O.
 |
|
|
|
|
|
|
|
|
NP1 |
|
|
-Waterproof type
(Equivalent to IP67)
-Compact size
-Accurate operating position
-High reliability
|
1A 12VDC |
S.P.D.T |
|
|
|
|
|
|
|
|
NP3 |
|
|
-Waterproof type
(Equivalent to IP67)
-Easy mounting
-Angled actuation
-High reliability
|
1A 12VDC |
S.P.D.T |
|
|
